FMD-116Y 聲光報警器產品介紹（中文版）
FMD-116Y聲光報警器是一款專為工業環境設計的智能安全警示設備，通過高亮度光效與穿透性音頻的協同作用，為各類作業場景提供高效警示解決方案。設備采用模塊化結構設計，支持多場景快速部署，適用于倉儲管理、生產線監控、電力系統預警及公共區域安全防護等多領域應用場景。
產品搭載復合型LED光源系統，可實現360°無死角視覺覆蓋，提供紅藍雙色動態閃爍模式，亮度達8000流明以上，確保在強光或低光照環境中均能清晰辨識。同步配置寬頻聲波發生器，支持110分貝可調音量輸出，內置8種預置警報音調，涵蓋間斷式蜂鳴、持續警示音等多種模式，可根據現場需求通過撥碼開關快速切換工作模式。
殼體采用高強度工程復合材料一體成型，具備IP65防護等級，可在-30℃至+70℃溫度范圍內穩定運行。頂部集成防塵透氣膜結構，有效平衡內外氣壓的同時阻隔粉塵侵入。底部配置通用型卡扣支架，兼容35mm標準導軌安裝與壁掛式固定，支持水平/垂直多角度調節。供電系統適配12-24V DC寬電壓輸入，內置過載保護與極性反接防護模塊，降低安裝失誤導致的設備損壞風險。
本產品特別強化了環境適應性能，通過振動阻尼結構有效降低機械噪音干擾，內置溫度補償電路確保極端環境下光聲參數穩定。適用于機械制造車間、物流轉運中心、地下停車場及化工園區等復雜環境，為設備啟停預警、區域禁入提示、緊急狀態示警等場景提供可靠保障。通過優化功耗管理，設備在持續工作模式下能耗低于8W，符合現代工業節能環保需求。
FMD-116Y Alarm Beacon Product Introduction (English Version)

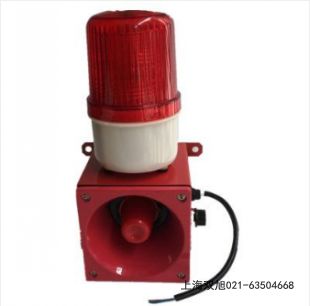

The FMD-116Y Alarm Beacon is an intelligent safety warning device engineered for industrial environments, delivering effective alert solutions through the integration of high-intensity visual signals and penetrating audible alarms. Featuring modular construction design, it enables rapid deployment across multiple operational scenarios, including warehouse management, production line monitoring, power system alerts, and public area security applications.
Equipped with a composite LED lighting system, the device provides 360-degree visual coverage with red/blue alternating flash modes, achieving over 8000 lumens brightness to ensure clear visibility under strong ambient light or low-light conditions. The integrated wide-frequency acoustic generator delivers adjustable 110dB output with 8 preset alarm tones, including intermittent buzzer and sustained warning modes, selectable via DIP switch configuration.
Constructed with high-strength engineering composite material, the housing attains IP65 protection rating and maintains stable operation within -30℃ to +70℃ temperature range. The top-mounted dustproof ventilation membrane balances internal pressure while blocking particulate ingress. The universal mounting bracket supports 35mm DIN rail installation and wall-mounting options with multi-angle adjustment capability. The power supply system accepts 12-24V DC input with built-in overload protection and reverse polarity safeguards to prevent installation-related damages.
Enhanced environmental adaptability is achieved through vibration damping structure that minimizes mechanical noise interference and temperature-compensated circuitry ensuring consistent performance under extreme conditions. Ideal for manufacturing plants, logistics hubs, underground parking facilities, and chemical processing zones, it provides reliable alerts for equipment status warnings, restricted area notifications, and emergency situations. With optimized power management, the device consumes less than 8W in continuous operation mode, aligning with modern industrial energy efficiency requirements.
The product emphasizes user-centric design principles, offering plug-and-play installation and maintenance-free operation. Customizable activation modes support both standalone operation and system integration via dry contact interfaces. Optional synchronization control enables multi-unit coordinated alert patterns for large-scale facility applications.
