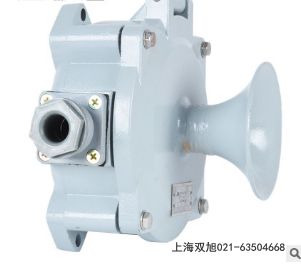

TBJ-100聲光報警器
TBJ-100聲光報警器產品介紹（中文）
TBJ-100聲光報警器是一款專為大型起重機械、港口碼頭及冶金行業設計的工業級安全警示設備。該產品采用聲光一體化設計，集成了高亮度LED頻閃燈和宏亮報警音響，能在嘈雜環境中有效提醒現場人員注意安全。報警器配備不銹鋼防護罩和防風雨電路工藝，具有防水、防塵、耐沖擊的特性，適應露天惡劣作業環境。其警燈直徑100mm，采用高透明材料罩殼，配合5W/25W可調功率音響，支持三種音調自由切換，確保300米外仍能清晰聽到警示聲。產品可直接接入AC220V電源，安裝簡便，適用于天車、皮帶輸送機等設備的安全預警。1412
TBJ-100 Sound & Light Alarm Product Introduction (English)
The TBJ-100 Sound & Light Alarm is an industrial-grade safety warning device specifically developed for large-scale lifting machinery, port operations, and metallurgical applications. Featuring integrated audible and visual alerts, it combines high-brightness LED strobe lights with powerful 5W/25W alarm speakers to ensure effective notification in noisy environments. The unit s stainless steel protective cover and weatherproof circuit design provide resistance against water, dust, and mechanical impacts, making it suitable for outdoor harsh conditions. With a 100mm diameter warning light using high-transparency materials and adjustable audio tones, the alarm remains clearly audible beyond 300 meters. Simple AC220V direct connection and compact dimensions (370x160x140mm) allow easy installation on cranes, conveyor systems, and other industrial equipment. 31926
產品功能特點（中文）
該報警器具有多重實用功能：旋轉警燈每分鐘60-80次頻閃，紅光醒目穿透性強；音量可通過外部旋鈕調節，支持工程警報、消防聲等多種音效模式；內部采用集成電路設計，穩定性高且維護需求低。針對特殊場景需求，產品可提供語音定制服務，包含"設備啟動請注意"等六種預錄提示音。電路經過灌注技術處理，防護等級達到IP65，-30℃至+70℃環境下均可穩定工作。一體化結構省去復雜接線，鋼板噴涂外殼兼顧美觀與耐用性，是起重機械、礦山、船舶等領域的理想安全解決方案。51627
Functional Features (English)
This alarm delivers multiple practical functions: The rotating beacon flashes at 60-80 RPM with highly visible red light, while external knobs allow volume adjustment and selection among engineering alert, fire siren and other sound patterns. Its integrated circuit design ensures reliable operation with minimal maintenance. For specialized applications, customizable voice prompts including "Caution: Equipment Starting" are available. With potted circuitry achieving IP65 protection, the device operates stably from -30℃ to +70℃. The all-in-one design eliminates complex wiring, and powder-coated steel housing combines aesthetics with durability, making it an optimal safety solution for cranes, mining, marine and similar industries. 82130
TBJ-100聲光報警器
|
接線方法
|
|
|
|
電源線 引入口(CABLE ENTRY)
|
|
|
|
|
|
1.使用防水接頭或者船舶用填料函
|
|
|
2.電源線 接入口:標準規格 : PF 1/2
|
|
|
3.引入口 PF 3/4 尺寸可以定做
|
|
|
接線方法
|
|
|
1.AC交流電源產品：不用分正負極,直接連接電源.
|
|
|
2.DC直流電源產品：黑色線端子連接在負極(-)。
|
|
|
3.為了更**的連接,電源線的端部使用冷壓接線端子“O"型"U"型
|
|
|
|
