BC-8Y聲光報警器
產品概述

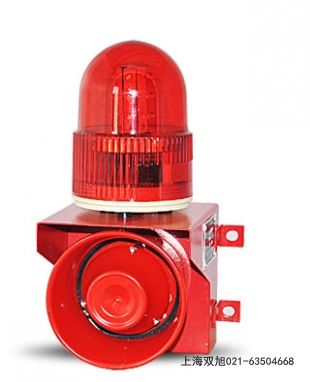

BC-8Y聲光報警器是一款專為工業環境設計的警示設備，采用聲光同步報警方式，適用于起重機械、港口設備、冶金化工等多種場合。該產品結合高亮度LED燈光和清晰響亮的音頻報警功能，能夠在復雜環境中有效傳遞警示信號。產品外殼采用鋁合金材料，結構堅固且重量輕，具有良好的防水防塵性能，適應-30℃至+70℃的工作溫度范圍。128
技術特點
BC-8Y聲光報警器采用先進的集成電路設計，工作穩定且抗干擾能力強。閃光燈部分使用高亮度LED燈管，壽命超過10萬小時；燈罩采用PC材料，具有優異的抗沖擊性和熱穩定性。產品提供多種音調選擇（A/B/E/D/Y/L/F/語音可選），音量可調節，滿足不同場景需求。安裝方式簡便，通過4個M8螺絲固定，支持垂直安裝，確保最佳聲光傳播效果。產品重量約2.7kg，便于現場安裝維護。679
應用領域
該報警器廣泛應用于輪胎吊、履帶吊、行車等起重設備，以及門吊、橋吊等港口機械。同時也適用于廠房電氣箱、冶金車間、化工廠區、礦山作業和海工船舶等環境。產品通過聲光雙重警示方式，有效提升作業現場的安全性，幫助預防潛在事故。多種電壓選項（AC24V-380V/DC24V）可滿足不同電力系統的需求。101520
Product Overview
The BC-8Y audible and visual alarm is an industrial warning device designed for harsh working environments. It features synchronized sound and light alerts, making it suitable for various applications including cranes, port machinery, metallurgical and chemical plants. The housing is constructed with durable aluminum alloy, offering lightweight yet robust protection with IP56-rated waterproof and dustproof performance. Operating temperature ranges from -30℃ to +70℃.1216
Key Features
This alarm system incorporates advanced IC technology for reliable operation with strong anti-interference capability. The flashing light utilizes high-brightness LED tubes with over 100,000 hours lifespan, while the polycarbonate lens provides excellent impact resistance and thermal stability. Multiple selectable tones (A/B/E/D/Y/L/F/voice) with adjustable volume meet diverse application requirements. Installation is simplified with four M8 mounting screws for vertical positioning to ensure optimal warning effect. The compact design weighs approximately 2.7kg for easy handling.6719
Applications
The BC-8Y alarm is widely used in material handling equipment like rubber-tired gantry cranes, crawler cranes and overhead traveling cranes, as well as port machinery including gantry cranes and bridge cranes. It also serves effectively in factory electrical rooms, metallurgical workshops, chemical plants, mining operations and marine vessels. Available in multiple voltage options (AC24V-380V/DC24V) to accommodate different power systems. The dual warning modes significantly enhance worksite safety by providing clear visual and audible alerts.101525
BC-8Y聲光報警器
聲光報警器一體化聲光報警器聲光報質量保證聲光報警器 八音聲光報警燈參數報價 防爆型聲光報警器廠
啟晟牌語音聲光報警器是我公司技術人員根據用戶之所需，是輸煤系統起動、鐵路道口及大型設備行走報警的*佳產品。其優點集語音、聲、光于一體，并可直接 接入交流220V電源工作，改變了原來只有聲或只有光的缺陷。
功能
本產品具有六種語音、一種報警鈴供用戶現場使用選擇。 語音內容：
1、(工程音) 皮帶起動請注意；
2、(交通音） 注意有人上下車；
3、(警報音） 設備起動請注意；
4、(救護車音） 注意車上有人作業；
5、(汽笛音） 你好請注意**；
6、(禮賓開道音）火車來了請注 意；
7、(消防報警音）直接提供警**音。
報警器外部設有語音調節開關、音量調節開關可以在惡劣的環境下正常工作。
參數(根據客戶要求定制)
電源電壓：220V/AC或380V/AC 或
