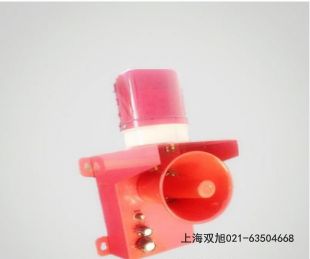

聲光報警器BC-110
產品概述
BC-110聲光報警器是一款專為工業環境設計的高效警示設備，采用鋁合金外殼和集成電路核心，兼具聲音與光信號雙重報警功能。頂部配置大功率回轉燈和揚聲器，適用于起重機械、港口設備、礦山作業等大型工業場景的安全預警。產品支持多電壓輸入（AC24V-380V/DC24V-220V），具備防水防塵特性，可在船舶等潮濕環境中穩定工作。123
核心特點
該設備采用聚碳酸酯燈罩和鋁合金壓鑄結構，透光性強且耐腐蝕，LED頻閃燈可視距離遠，配合106-120分貝的音頻輸出，能在嘈雜環境中有效傳遞警示信號。支持電鈴聲、消防聲等多種音調定制，并可通過電位器調節音量。產品設計注重抗震性和安裝便捷性，采用M6/M8螺絲固定，適應-30℃至+70℃的工作溫度范圍。51014
應用場景
BC-110廣泛應用于天車、橋吊、輸送帶等起重運輸設備，以及冶金、石油化工等行業的安全生產場景。其聲光同步報警功能可提升作業區域的安全性，特別適合需要遠距離警示的港口、隧道等場所。用戶可根據實際需求選擇紅、黃、綠三種燈罩顏色，并定制語音提示內容。71719
Product Overview
The BC-110 audio-visual alarm is an industrial-grade warning device featuring an aluminum alloy housing and integrated circuit design. Equipped with a high-power rotary beacon and loudspeaker, it provides dual visual and audible alerts for safety monitoring in heavy-duty applications such as cranes, mining equipment, and port machinery. The unit supports wide voltage input (AC24V-380V/DC24V-220V) with IP56 protection for reliable operation in marine environments. 31222
Key Features
This alarm utilizes polycarbonate lens and die-cast aluminum construction for enhanced durability. Its LED strobe offers 180° visibility range while the 106-120dB siren ensures effective alert transmission in noisy conditions. Multiple tone options (including fire engine and police siren modes) are available with adjustable volume via potentiometer. The product features vibration resistance and easy installation with M6/M8 screws, operating reliably between -30℃ to +70℃. 81424
Applications
Ideal for material handling systems including overhead cranes and conveyor belts, the BC-110 is widely adopted in metallurgy, petrochemical and other industrial safety systems. Its synchronized light-sound warning significantly improves hazard awareness in large-area operations like ports and tunnels. Customizable with red/yellow/green lens options and pre-recorded voice messages to meet specific site requirements. 92027
聲光報警器BC-110
聲光報警器BC-110
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
