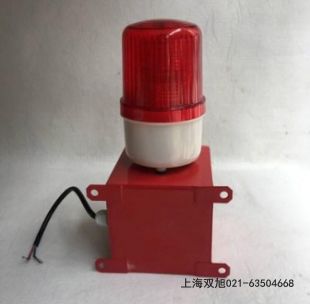

FMD-116聲光報警器QYB200-A
FMD-116聲光報警器QYB200-A產品介紹（中文）
FMD-116聲光報警器QYB200-A是一款專為工業環境設計的多功能報警裝置，采用聲光一體化設計，能夠在嘈雜環境中提供清晰可辨的警示信號。該產品配備高亮度LED燈和響亮蜂鳴器，支持三種可調音頻模式（警車聲、消防聲、工程聲），聲音穿透力強，300米外仍可清晰識別，近距離宏亮但不刺耳，有效警示工作人員的同時保護聽覺健康。燈光部分采用間歇閃亮設計，日光下可見耀眼光束，夜間效果更佳。產品支持AC220V寬電壓輸入，適應-20℃至50℃工作環境，防護等級達IP65，具備防塵防水特性，適用于冶金、港口、消防等復雜場景。安裝方式靈活，可選壁掛或磁吸底座，整體結構采用工程塑料與金屬復合材質，兼顧輕量化與耐用性。12612
FMD-116 Sound & Light Alarm QYB200-A Product Introduction (English)
The FMD-116 QYB200-A is an industrial-grade combined audible and visual alarm device featuring synchronized LED strobe lights and high-decibel buzzer. It offers three selectable alarm tones (police siren, fire engine horn, construction alert) with exceptional sound penetration up to 300 meters, delivering clear warnings without causing hearing discomfort. The rotating beacon produces intense flashing visible under direct sunlight with enhanced nighttime visibility. Operating on AC220V power supply, this unit maintains stable performance across -20℃ to 50℃ environments with IP65-rated dustproof and waterproof enclosure. The compact design allows flexible wall-mounting or magnetic base installation, suitable for metallurgical plants, docks, fire control systems and other demanding applications where personnel safety requires prominent alerts. The housing combines engineering plastics with metal components for optimal durability and lightweight portability.281416
功能特性補充說明（中文）
該報警器支持手動觸發與自動感應兩種工作模式，內置智能電路可調節音量大小和閃光頻率。特殊設計的防震結構確保設備在振動環境中穩定運行，而防蟲防塵工藝延長了使用壽命。燈光采用多顆高流明LED組合，閃爍頻率達60次/分鐘，配合119分貝標準報警音效形成復合警示效果。產品適用于天車、輸煤廊道等需要持續安全監控的場所，通過聲光協同提示有效預防作業風險。471722
Additional Functional Features (English)
This alarm supports both manual activation and sensor-triggered automatic operation, with adjustable volume (max 119dB) and customizable flash patterns (60 flashes/min). The shock-resistant construction withstands continuous vibration in heavy machinery environments, while insect-proof seals prevent internal component damage. Multiple high-lumen LEDs create 360° visible warning signals that synchronize with standardized alarm tones for comprehensive hazard notification. Particularly effective for overhead cranes, conveyor systems and other industrial scenarios requiring persistent safety monitoring, its dual-alert mechanism significantly enhances worksite risk awareness.11151926
FMD-116聲光報警器QYB200-A
FMD-116聲光報警器QYB200-A
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
FMD-116聲光報警器QYB200-A
