UL-6-H料位開關
UL-6-H阻旋式料位開關產品介紹（中英文）
UL-6-H阻旋式料位開關是一種用于固態物料（包括粉狀、粒狀、塊狀、膠狀等）的工業級料位檢測設備。該產品采用機械接觸式測量原理，通過微型電機驅動檢測葉片旋轉，當物料觸及葉片時，旋轉受阻觸發內部微動開關動作，輸出開關信號。其結構設計包含過載保護裝置，當葉片承受過大阻力時，離合器自動打滑以保護電機不受損壞。產品接觸物料部分采用不銹鋼材質，適用于-20℃至200℃的工作環境，防護等級達IP65，可滿足化工、水泥、糧食、制藥等行業對粉塵、潮濕環境的適應性要求。安裝方式支持水平、垂直或傾斜安裝，葉片規格可根據物料比重調整彈簧拉力進行適配。3419
The UL-6-H Rotary Paddle Level Switch is an industrial-grade detection device designed for solid materials including powders, granules, lumps and viscous substances. It operates on a mechanical contact principle where a micro-motor drives a rotating paddle. When material obstructs the paddle s movement, an internal micro-switch is triggered to generate output signals. The overload protection mechanism automatically disengages the clutch when excessive resistance occurs, safeguarding the motor. Constructed with stainless steel contact parts, it withstands temperatures from -20℃ to 200℃ with IP65 protection, making it suitable for dusty or humid environments in chemical, cement, food and pharmaceutical industries. Flexible installation options include horizontal, vertical or angled mounting, with adjustable spring tension to accommodate varying material densities. 111625
產品特點與技術優勢
該產品具備抗粘附設計，能有效避免物料附著導致的誤動作；雙重密封結構防止粉塵滲入軸承系統，延長使用壽命；扭力調節機構支持0.4-1.0g/cm³范圍的物料密度檢測。機電分離式結構便于維護，無需拆卸整體設備即可更換部件。產品運行時功耗低于5W，輸出觸點容量為10A/250VAC，可直接控制中小型輸送設備。特殊設計的防護板可避免物料直接沖擊葉片，適用于原煤倉、生料倉等高沖擊工況。指示燈設計提供直觀的工作狀態顯示，便于現場人員快速判斷料位情況。91827
Key features include anti-clogging design to prevent false signals from material buildup, dual-sealed bearings for extended service life, and torque adjustment for materials with 0.4-1.0g/cm³ density range. The modular design allows component replacement without full disassembly. With <5W power consumption and 10A/250VAC contact rating, it directly controls conveying equipment. Impact-resistant paddles with protective shields suit high-impact applications like raw coal bunkers. Visual status indicators enable quick on-site diagnostics. 122226
應用場景與適配性
在工業生產過程中，該設備廣泛應用于粉煤灰倉、水泥筒倉、谷物儲罐等場景的料位監控，可實現滿倉報警或空倉提示。針對不同性質的物料，可選用標準型、高溫型或防爆型配置。例如在飼料加工中監測配料倉的物料余量，或在塑料顆粒生產線中控制擠出機的供料節奏。其穩定性能在導電性物料、濕度變化大的工況中表現尤為突出，安裝時建議避開物料直接下落區域，多位測量時需保持1米以上間距以避免信號干擾。1713
Industrial applications span fly ash silos, cement storage and grain bins for high/low level alarms. Configurations include standard, high-temperature and explosion-proof models to handle diverse materials like plastic pellets or animal feed. The device excels in conductive materials or humid environments. Installation guidelines recommend avoiding direct material fall paths and maintaining >1m spacing between multiple units. Its reliability supports continuous processes such as extruder feeding systems in plastics production. 5817
UL-6-H料位開關
UL-6-H
產品描述

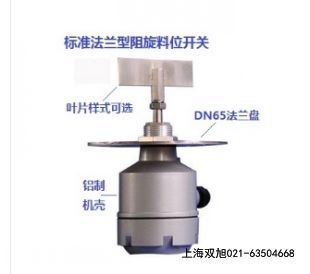

阻旋料位開關也有的稱之為阻旋物位計或者阻旋料位開關、阻旋物位開關等，主要是根據它具體的不同用途的不同名稱。阻旋式料位開關是采用交流微電機經減速后，帶動檢測葉片慢速旋轉。當被測物料的料位上升使葉片的轉動受到阻擋時，檢測機構主軸產生旋轉位移。此位移先使一個微動開關動作，發出有料的信號。隨后另一個微動開關動作，切斷微電機的電源使其停止轉動。只要倉內的料位不變，此種狀態便將一直保持下去。
詳細描述：
斷料報警器/斷煤開關
結構緊湊,外型小巧，進口品質、國產價格；
鋁合金殼體,堅實可靠;
原裝進口電機,性能穩定.
檢測散裝固體物料的旋轉葉片式開關技術；
高度集成的機械宇航密封，可防止粉塵沿軸滲入；
獨特的彈性離合器結構，葉片過載時，自動保護電機；
特殊葉片可用于低密度物料；
堵料報警開關系列分保護管型、旋轉確認型、長度變更型、耐熱型；
電源電壓：：220VAC（110VAC、24VAC、24VDC可選）；
觸點容量：250VAC/（阻性負載），單刀雙擲,雙刀雙擲；
工作溫度：-10～80℃（高溫型1000℃）；
防護等：IP65，特殊型號耐壓防爆。
