RT60料位開關
RT60阻旋式料位開關產品介紹
RT60阻旋式料位開關是一種用于固態物料（包括粉狀、顆粒狀、塊狀等）的物位監測設備，采用微型電機驅動葉片旋轉的工作原理。當被測物料上升至葉片位置時，葉片受阻停止轉動，通過內部機構輸出開關信號并切斷電機電源；物料下降時葉片恢復旋轉，實現連續監測。該產品具有密封設計，可防止粉塵滲入，并配備過載保護功能，當葉片承受過大負荷時離合器自動打滑保護電機。其葉片材質采用不銹鋼，支持水平或垂直安裝方式，適用于-20℃至80℃的工作環境（高溫型可達400℃），防護等級達到IP65。產品可通過調節扭力彈簧適應不同比重的物料監測需求，比重較大時調強彈簧拉力，比重較小時調弱以保持靈敏度。2310
RT60 Rotary Paddle Level Switch Product Introduction
The RT60 rotary paddle level switch is a solid material level monitoring device designed for powders, granules, and bulk materials. Its working principle involves a micro-motor driving a rotating paddle - when material rises to contact the paddle, rotation stops triggering a switch signal while cutting power to the motor; when material level drops, the paddle resumes rotation. Featuring dust-proof sealing construction and overload protection with an automatic clutch mechanism, the stainless steel paddle can be installed horizontally or vertically. The device operates in temperatures ranging from -20℃ to 80℃ (high-temperature versions available up to 400℃) with IP65 protection rating. Adjustable torque springs allow sensitivity optimization for materials of different densities: stronger spring tension for heavier materials and weaker adjustment for lighter materials ensures reliable detection. The simple mechanical design requires minimal maintenance while providing consistent performance in various industrial applications. 262829
產品特點與應用領域
該產品采用機電分離結構便于維護，接線盒設計符合防雨要求。獨特葉片轉速為1轉/分鐘，功耗僅4W，觸點容量10A/250VAC。適用于飼料、食品、制藥、化工、塑料、建筑、化肥等行業，特別適合存在粉塵、高溫或腐蝕性物料的工況。安裝時需避開進料口直沖位置，水平安裝建議葉片向下傾斜10-20度以減少物料沖擊。產品提供法蘭連接方式，可根據物料特性選擇不同葉片形狀，其穩定性和適應性使其成為料倉、筒倉等場景的實用監測解決方案。41722
Technical Features & Applications
With separated mechanical-electrical structure for easy maintenance and raintight junction box design, the device operates at 1 RPM with 4W power consumption and 10A/250VAC contact rating. It suits multiple industries including food processing, pharmaceuticals, chemicals, plastics and construction, particularly effective in dusty, high-temperature or corrosive environments. Installation should avoid direct material impact from feed inlets, with 10-20 degree downward tilt recommended for horizontal mounting. Flange connection options and customizable paddle configurations adapt to various material characteristics. These reliable features make it a practical solution for silos, bins and hoppers requiring continuous level monitoring under challenging conditions. 71119
RT60料位開關
RT60
產品描述

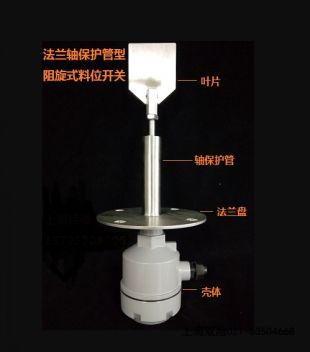

阻旋料位開關也有的稱之為阻旋物位計或者阻旋料位開關、阻旋物位開關等，主要是根據它具體的不同用途的不同名稱。阻旋式料位開關是采用交流微電機經減速后，帶動檢測葉片慢速旋轉。當被測物料的料位上升使葉片的轉動受到阻擋時，檢測機構主軸產生旋轉位移。此位移先使一個微動開關動作，發出有料的信號。隨后另一個微動開關動作，切斷微電機的電源使其停止轉動。只要倉內的料位不變，此種狀態便將一直保持下去。
詳細描述：
斷料報警器/斷煤開關
結構緊湊,外型小巧，進口品質、國產價格；
鋁合金殼體,堅實可靠;
原裝進口電機,性能穩定.
檢測散裝固體物料的旋轉葉片式開關技術；
高度集成的機械宇航密封，可防止粉塵沿軸滲入；
獨特的彈性離合器結構，葉片過載時，自動保護電機；
特殊葉片可用于低密度物料；
堵料報警開關系列分保護管型、旋轉確認型、長度變更型、耐熱型；
電源電壓：：220VAC（110VAC、24VAC、24VDC可選）；
觸點容量：250VAC/（阻性負載），單刀雙擲,雙刀雙擲；
工作溫度：-10～80℃（高溫型1000℃）；
防護等：IP65，特殊型號耐壓防爆。
