FPZX-31B-200料位開關
產品概述
FPZX-31B-200阻旋料位開關是一款專為工業料位監測設計的機械式控制裝置，適用于粉狀、顆粒狀及塊狀固態物料的料位檢測與控制。該產品采用不銹鋼和鋁合金材質制造，具有耐腐蝕、防潮防塵的特性，可在食品、化工、水泥等高塵或潮濕環境中穩定工作。其核心部件包含微型電機驅動系統、可調節靈敏度葉片和雙重機械保護裝置，能夠有效避免物料沖擊或過載造成的設備損壞。產品支持水平、垂直或傾斜安裝，適配多種工業場景需求。123
工作原理

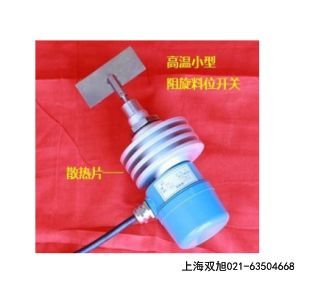

當電機帶動檢測葉片低速旋轉（1轉/分鐘）時，葉片遇到物料阻力會觸發微動開關輸出信號，同時切斷電機電源；物料下降后，彈簧機構自動復位葉片繼續旋轉。通過五檔靈敏度調節裝置，可適應不同比重的物料檢測需求（≥0.5g/cm³）。獨特的散熱設計使其能在≤300℃高溫環境下穩定運行，優于普通電容或超聲波料位開關的耐溫性能。256
產品特點
FPZX-31B-200采用接觸式測量方式，結果真實可靠且不受電磁干擾。雙層密封結構達到IP65防護等級，可承受1MPa壓力且粉塵無法滲入。配備高亮度指示燈直觀顯示料位狀態，抗震防松結構設計延長使用壽命。其葉片形狀和軸長可根據客戶需求定制，支持螺紋或法蘭安裝方式，安裝時建議葉片與水平面呈10-20°夾角以減少物料沖擊。產品適用于冶金、礦山、塑料、化纖等行業，性價比優良。134
技術參數
工作電源支持220VAC/24VDC等多種電壓，輸出信號為SPDT單刀雙擲，觸點容量10A/250VAC。檢測葉片轉速1RPM，力矩1.0kg·cm，物料粒度建議≤20mm。環境適應性方面，可在-10℃~80℃溫度范圍和≤85%濕度條件下工作，電氣接口采用M20*1.5標準規格。259
Product Overview
The FPZX-31B-200 rotary paddle level switch is a mechanical control device designed for industrial material level monitoring, suitable for detecting and controlling powdered, granular, and bulk solid materials. Constructed with stainless steel and aluminum alloy, it features corrosion resistance, moisture-proof, and dust-proof properties, ensuring stable operation in high-dust or humid environments such as food processing, chemical plants, and cement industries. Its core components include a micro-motor drive system, adjustable sensitivity paddles, and dual mechanical protection mechanisms to prevent damage from material impact or overload. The product supports horizontal, vertical, or inclined installation for versatile industrial applications.13
Working Principle
When the motor drives the detection paddle to rotate at low speed (1 RPM), material resistance triggers a micro-switch to output signals while cutting off the motor power. After material level drops, the spring mechanism automatically resets the paddle. With five sensitivity adjustment levels, it adapts to materials of varying densities (≥0.5g/cm³). The unique heat dissipation design ensures stable performance in high-temperature environments up to 300℃, outperforming conventional capacitive or ultrasonic level switches.26
Key Features
The FPZX-31B-200 employs contact-based measurement for reliable results without electromagnetic interference. Its double-sealed structure achieves IP65 protection, withstanding 1MPa pressure and dust ingress. High-brightness indicators provide clear level status visibility, while anti-vibration and anti-loosening designs enhance durability. Customizable paddle shapes and shaft lengths are available, supporting threaded or flanged installation with recommended 10-20° tilt to minimize material impact. Ideal for metallurgy, mining, plastics, and synthetic fiber industries, it offers balanced performance and cost-effectiveness.14
Technical Specifications
Operating power supports 220VAC/24VDC variants, with SPDT output (10A/250VAC). Paddle rotation speed is 1 RPM at 1.0kg·cm torque, suitable for materials ≤20mm in size. Environmental tolerance ranges from -10℃ to 80℃ with ≤85% humidity, featuring M20*1.5 standard electrical interface.259
FPZX-31B-200料位開關
技術特點
性強:應用于各種場合，飛灰、顆粒、粉體液體枯胭、導電和非導電物料。
抗粘附電路:來用抗粘附電路可以物料的粘附而產生虛假信號。
探頭可折式:探頭與控制器可分離，無電纜連接，安裝拆除不影洞進出科。
探頭耐高低溫:探頭適臺184260C的工作環境，還提供國資高溫探頭。
輸出實量大:采用容盤為10A .11的腿電器敏點輸出，并有狀態燈顯示工作狀態，0~ 30動科時功能貼片技術:使電路線路抗壙性更強，電路參數更穩定更可靠，
浪壓技術:提高了探頭的使用壓力，延長的使用壽命
技術參數
1.電源：220VAC/110VAC/24VAC/24VDC
2.觸點容量：250VAC/10A SPDT（單刀雙擲）
3.功率：4W
4.葉片轉速：1RPM（轉/分）
5.力矩：1.0kg×cm
6.物料比重：≥0.5g/cm3
7.工作溫度：-10℃-80℃（zui高可達400℃）
8.絕緣電阻：≥100MΩ
9.介電強度：1500V*1min
